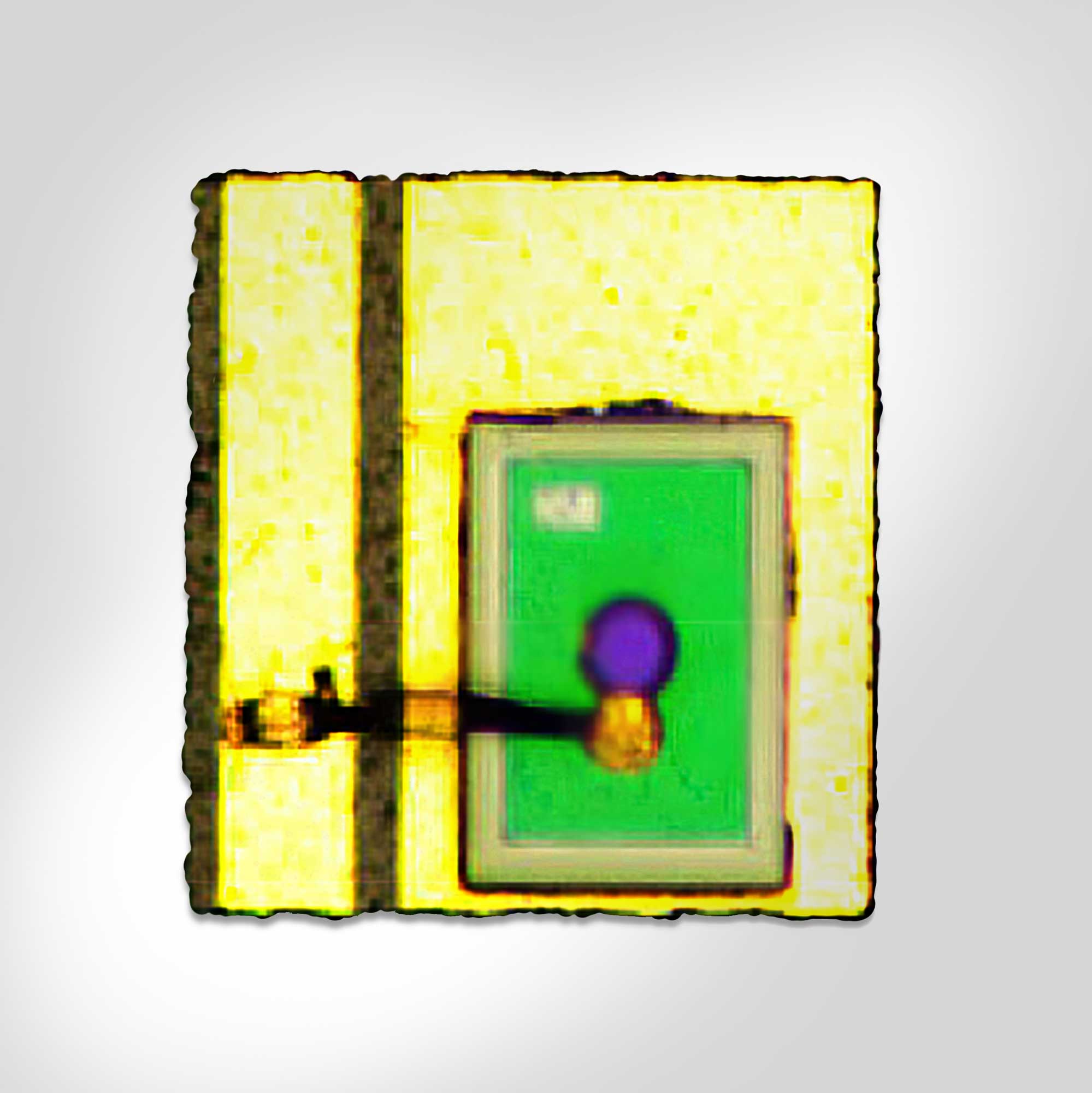

InGaAs PIN Photodiode With Large Photosensitive Area Chip-On-Carrier

Go!Foton large area Indium Gallium Arsenide (InGaAs) Photodiode consists of pin structure and photo sensitive area of 1 mm diameter with planer structure for high reliability. This PD has photo response in the near infrared spectrum range, between 950 and 1650 nm. This device has very high sensitivity and low noise, making it suitable for industrial application. The photodiode is mounted on ceramic subcarrier. PD chip is fabricated at Go!Foton proprietary wafer fab.

Features

  • 950 to 1625nm Spectral Response
  • High Sensitivity
  • Planer Structure for High Reliability
  • High Shunt Resistance
  • Low Dark Current
  • Low Capacitance
  • Chip-on-Carrier


InGaAs Avalanche Photodiode (APD) 2.5 Gbps Chip Front Illuminated GPON / GEPON

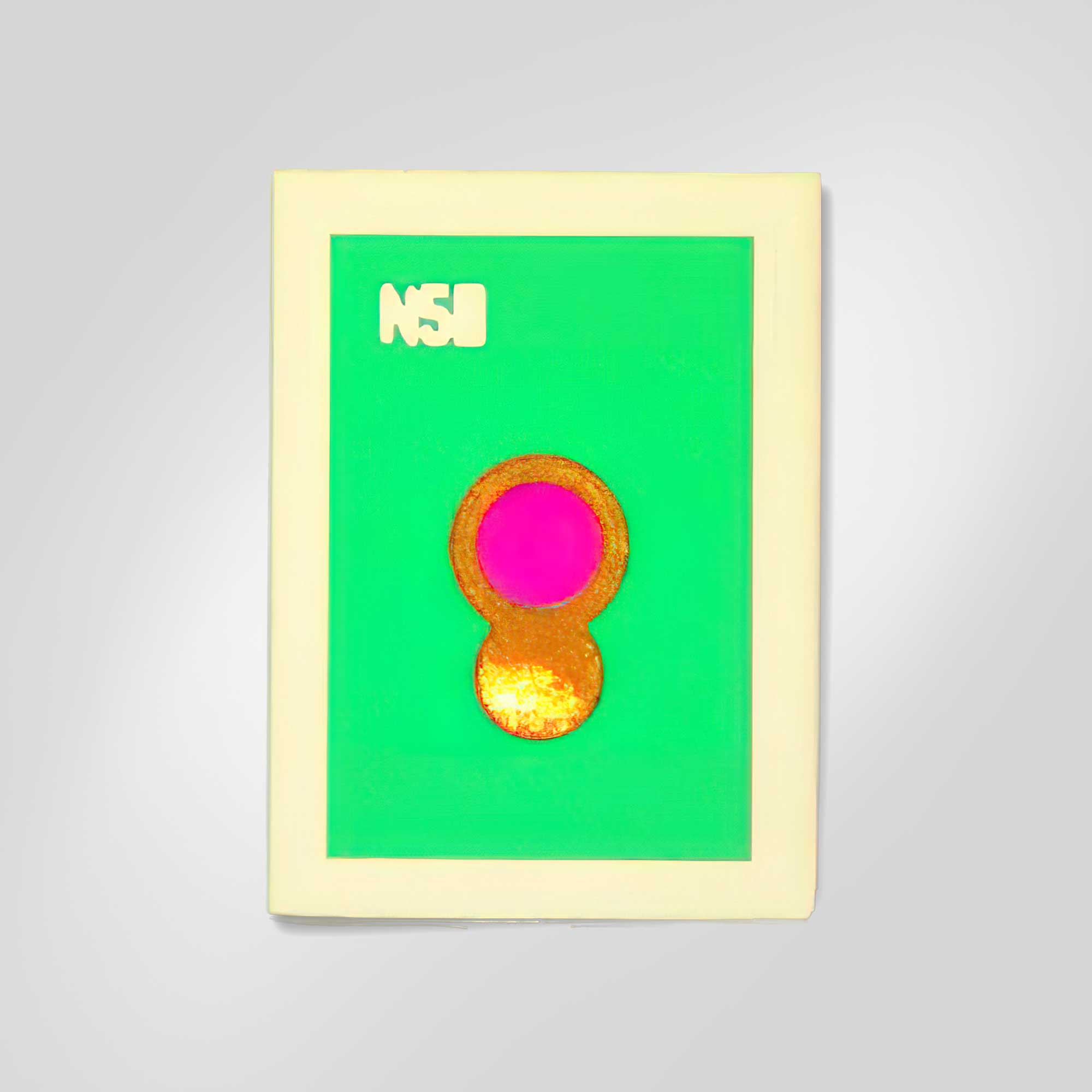

Go!Foton PDAF0055C Series are InGaAs APD chip. It is front illuminated type and planer structure with 55 um active area diameter. It is suitable for 2.5 Gbps application in G-PON / GE-PON. APD chip is fabricated at Go!Foton proprietary wafer fab.

Features

  • Planer Structure for High Reliability
  • 1000 to 1625nm Spectral Response
  • Low Dark Current


InGaAs Avalanche Photodiode (APD) 2.5 Gbps (Chip or Chip-on-Carrier)

Go!Foton’s Avalanche Photodiode (APD), front-illuminate type is suitable for 2.5 Gbps applications in G-PON/Ge-PON.  This InGaAs APD has a planer structure for high reliability.

Features

  • Ceramic sub-carrier
  • Planer Structure for High Reliability
  • 1000 to 1625nm Spectral Response
  • Low Dark Current
