TAP Detectors and Power Monitors

TAP Detectors and Power Monitors

Maintaining a highly efficient production operation ensures you get these highest quality jumpers in a timely fashion at highly competitive, market prices.

Go!Foton manufacturers a wide variety of single mode and multimode optical fiber jumpers for telecom and data center applications — offering two types of superior performance products.

The “Premium” jumpers are VZ TPR Certified Cables that provide the highest level of reliability. We also offer the high performance “Standard” jumpers that are Telcordia GR 326 tested and certified. Both the Premium and Standard cables are made in our state of the art manufacturing facility recognized by leading global service providers as one of the best in the industry. We attribute our success to the highly dedicated and skilled production team which starts by selecting only the highest quality fiber and connector components.

Each of our valued technicians is expertly trained in assembling and polishing connectors to near perfection. With a relentless commitment to quality, we offer only products meeting and exceeding unsurpassed optical performance.

We offer different connector types for our superior performance jumpers in demanding high density applications.

  1. Premium Patch Cords: LC and SC connectors, CS connectors
  2. Standard Patch Cords: LC and SC connectors, MDC Connectors

All connectors are not created equal. How do you know if your jumpers will go the distance? Our quality components and quality process is backed by a team of experts who know how fundamental jumper cables are to maintain reliable network operations. We back up all of our claims with product performance testing and auditing of our manufacturing facility by Telcordia Technologies.

Without fail, our jumper cables are fully compliant with Telcordia GR-326-CORE, Issue 4 which requires performance characterization and testing at 1310nm, 1490nm, 1550nm, and 1625nm. Four wavelength testing ensures that your jumpers will support the demanding requirements for 10G/40G/100G transmission and next generation PON deployment.

Go!Foton jumpers will give you the peace of mind that the foundation on which you build your network is capable of exceeding the ever demanding expectations of your customers. Don’t settle for second best!

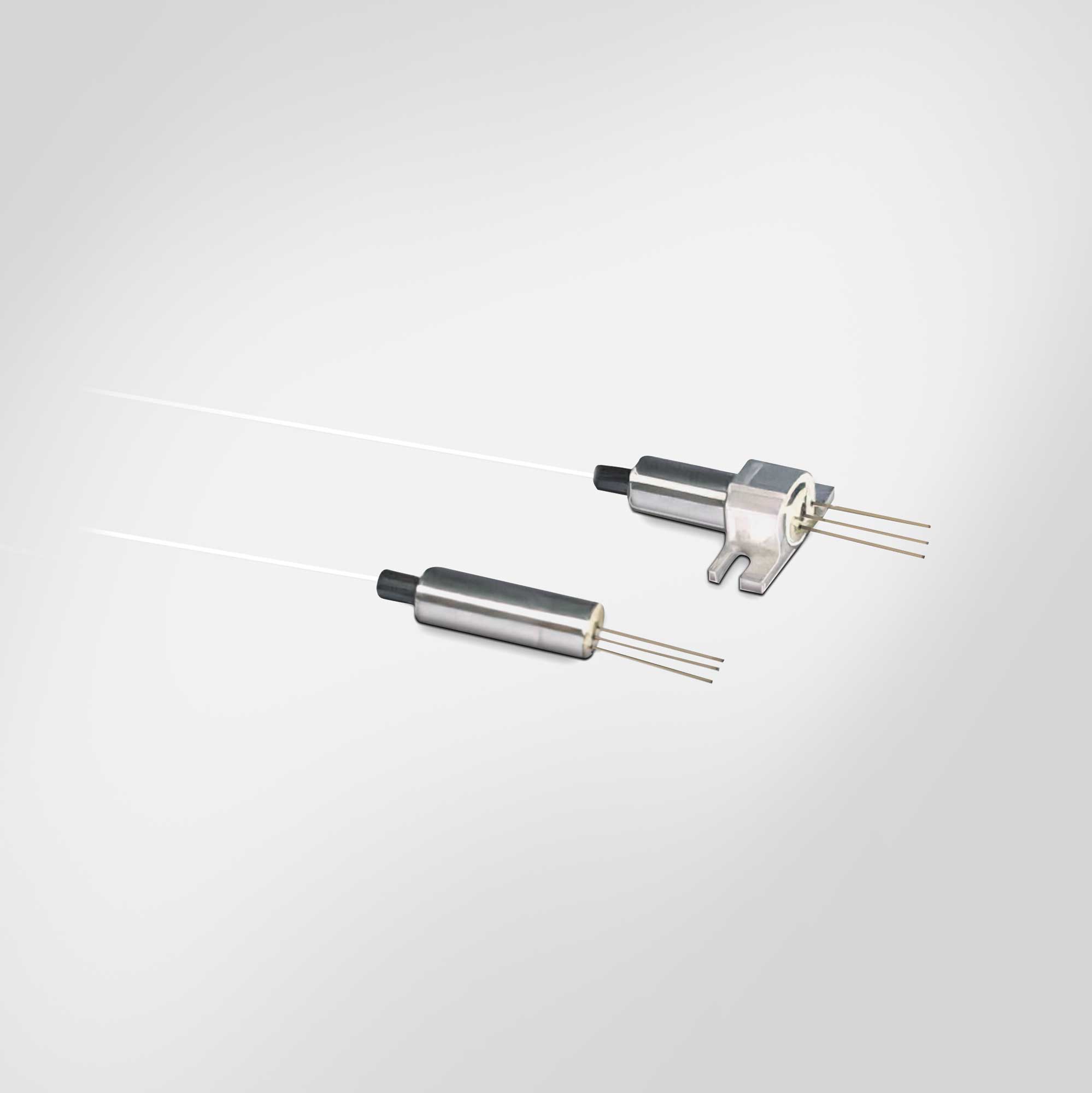

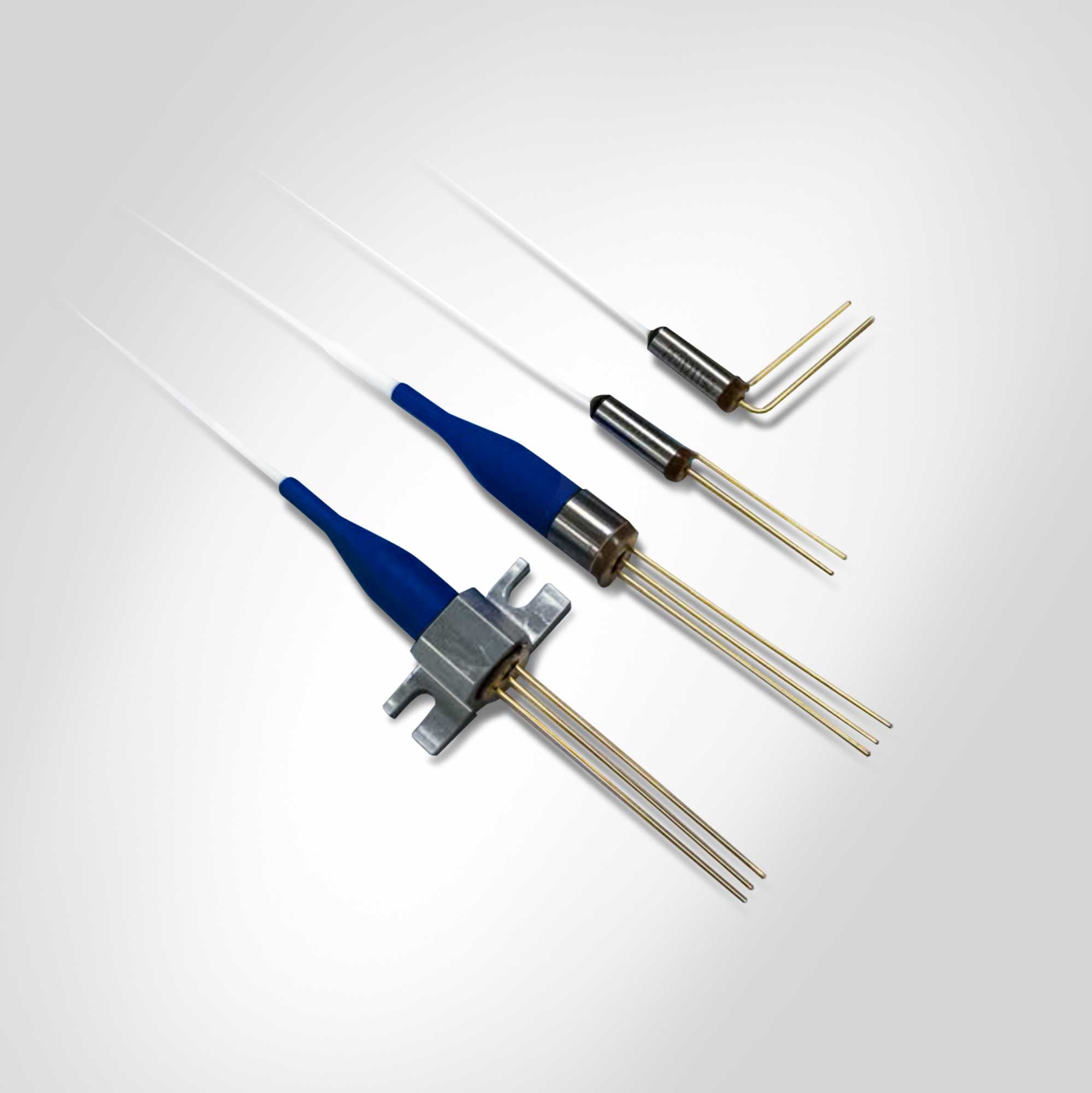

Power Monitor PIN Photodiode

Go!Foton’s Power Monitor PIN Photodiode assemblies are designed for optical network channel monitoring applications.

The hermetically sealed InGaAs photodetector has a low dark current and a flat and rapid power response across a wide wavelength range.

This product is available with mounting brackets (Flange) to ease board assembly.

Features

  • Epoxy-Free Optical Path
  • High Return Loss
  • Low Dark Current
  • Exceptionally Stable and Reliable
  • Dual Window Version Available

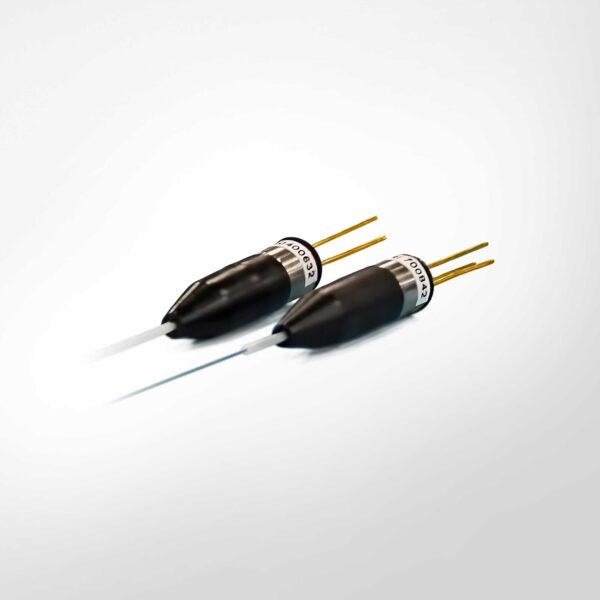

Power Monitor PIN Photodiode, Ultra Low Leakage

Go!Foton’s “Low Leakage” Power Monitor PIN Photodiode assemblies are designed for optical network monitoring applications.  The photodiode die is fabricated on Go!Foton’s proprietary wafer fab and assembled into an hermetically-sealed package. InGaAs photo Diode has a low Leakage (low dark current) and a flat and rapid power response across a wide wavelength range.  This product is available with mounting brackets(Flange) to ease board assembly.

Features

  • High Return Loss
  • Epoxy-Free Optical Path
  • Dual Window Version Available
  • Exceptionally Stable and Reliable
  • Extremely Low Dark Current at High Temperatures

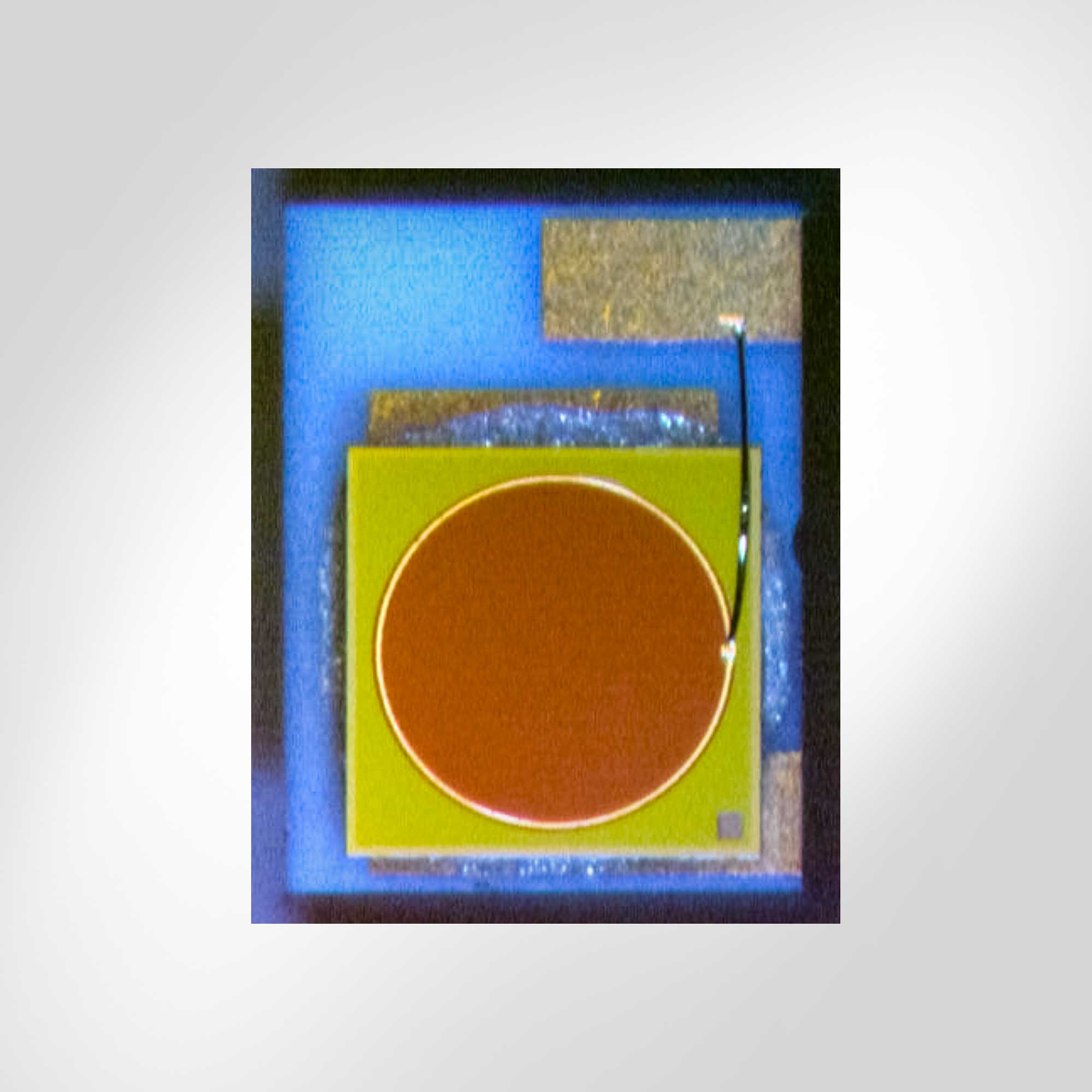

InGaAs PIN Photodiode With Large Photosensitive Area Chip-On-Carrier

Go!Foton large area Indium Gallium Arsenide (InGaAs) Photodiode consists of pin structure and photo sensitive area of 1 mm diameter with planer structure for high reliability. This PD has photo response in the near infrared spectrum range, between 950 and 1650 nm. This device has very high sensitivity and low noise, making it suitable for industrial application. The photodiode is mounted on ceramic subcarrier. PD chip is fabricated at Go!Foton proprietary wafer fab.

Features

  • 950 to 1625nm Spectral Response
  • High Sensitivity
  • Planer Structure for High Reliability
  •  High Shunt Resistance
  •  Low Dark Current
  •  Low Capacitance
  •  Chip-on-Carrier

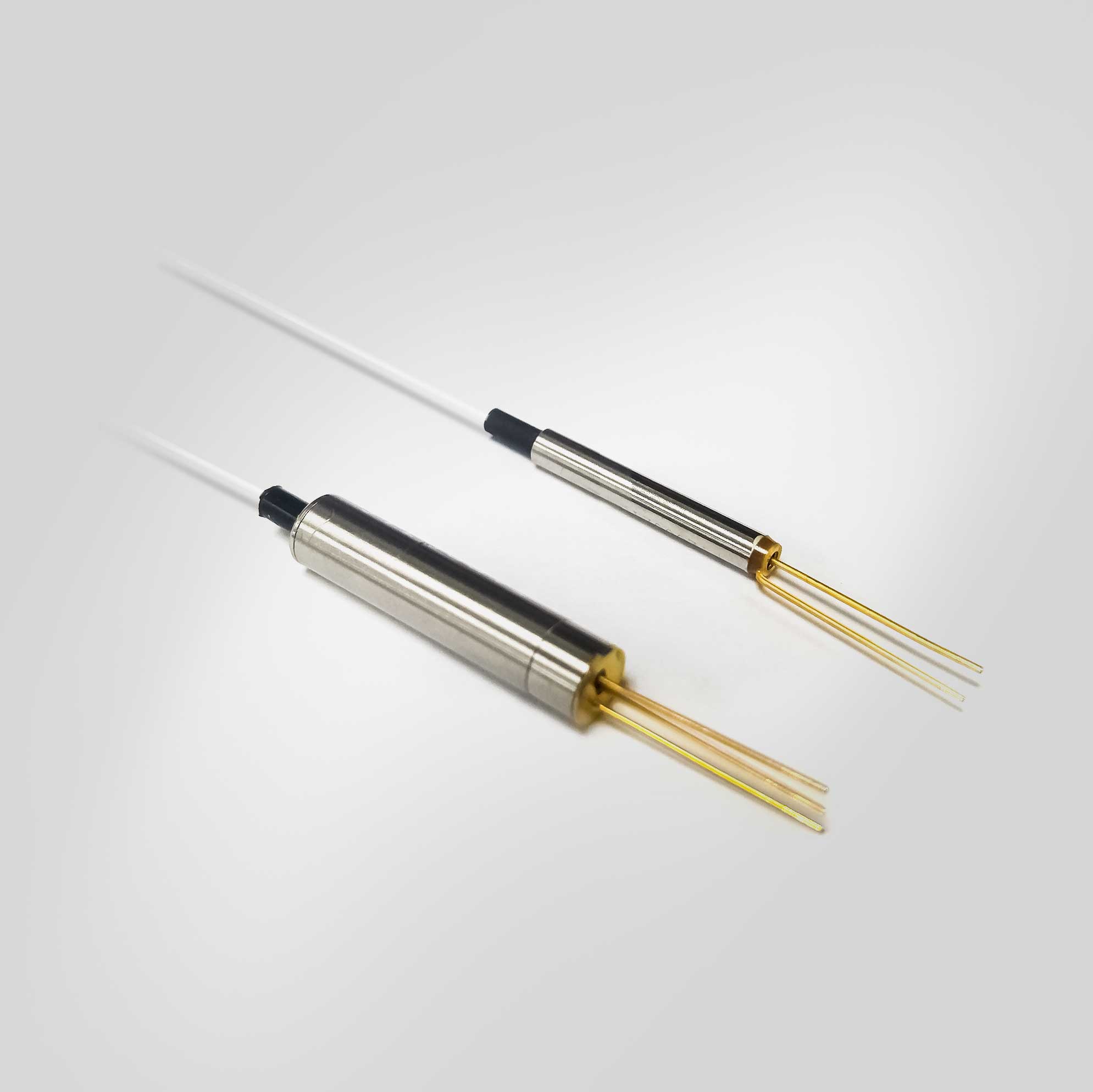

Single Channel TAP Detector: Standard and Compact Packaging

Go!Foton’s Integrated Tap Detector(TAPD) series combines an optical coupler, based on our filter-on-lens technology, with Go!Foton’s proprietaty PIN photodiode to create a single channel optical power monitor.  The integrated design reduces the number of parts, minimizes fiber handling and results in a compact footprint, which simplifies assembly of  amplifier and WDM monitoring devices.  The hermetically sealed InGaAs photo detector has a excellent low dark performance and a flat and rapid power response across a wide wavelength range.

Features

  • Low Insertion Loss
  • Low Wavelength Dependent Loss
  • Excellent Thermal Stability
  • Broad Wavelength Range
  • Low Dark Current
  • Telcordia GR-468-CORE Compliant

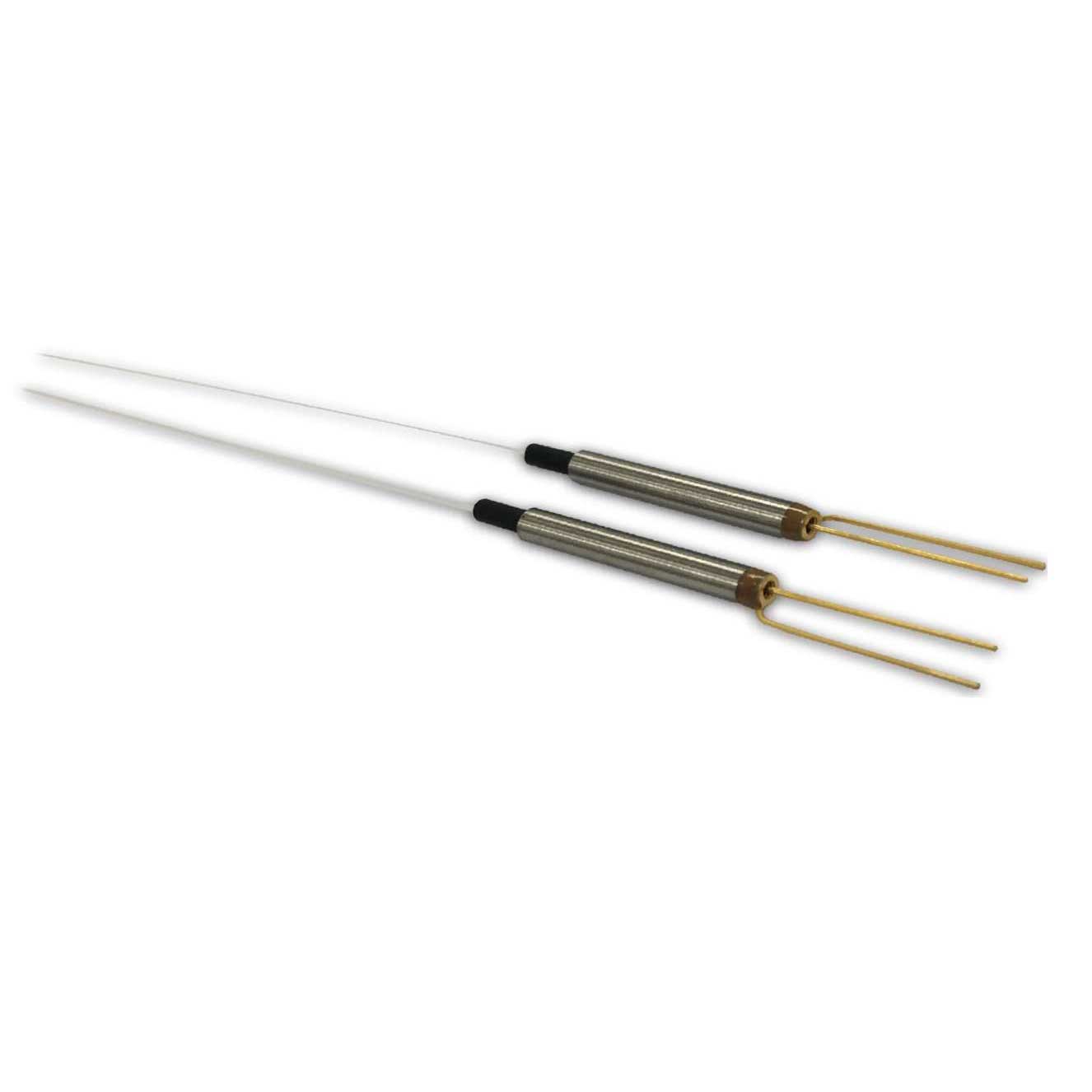

Single Channel Compact Unidirectional TAP Detector

Go!Foton’s integrated Tap Detector(TAPD) series combines an optical coupler, based on our filter-on-lens technology, with Go!Foton’s proprietary PIN photodiode to create a single channel optical power monitor.  The Unidirectional TAPD is designed specifically for EDFA applications.  With this design, the reflected light from the output fiber does not couple into the detector.   The hermetically sealed InGaAs photo detector has a low dark current and a flat and rapid power response across a wide wavelength range.

Features

  • Low Ripple
  • Low Insertion Loss
  • Excellent Directivity Performance
  • Epoxy-Free Optical Pat
  • Extremely Low Dark Current

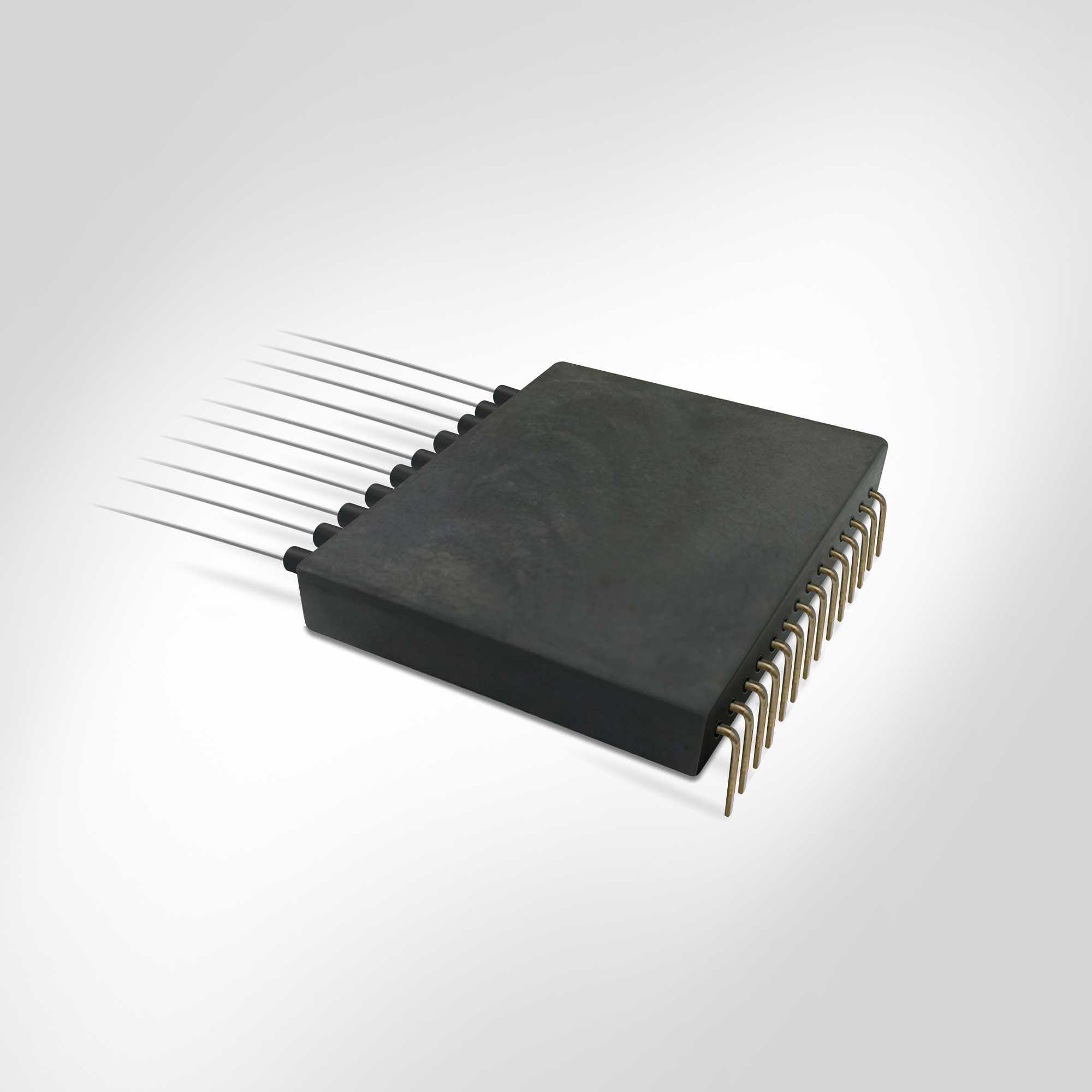

TAP Detector Array: 4, 8, 9 and 10 channels

Go!Foton’s Integrated Tap Detector Array combines optical couplers, based on NSG’s filter-on-lens technology, with Go!Foton’s proprietary PIN photodiodes to create a multi channel optical power monitor.  The integrated design reduces the number of parts, minimizes fiber handling and results in a compact footprint, which simplifies assembly of amplifier and WDM monitoring devices.  The hermetically sealed InGaAs photo detector has a low dark current, a flat and rapid power response and extremely high temperature stability across a wide wavelength range.  This device is also available with “Ribbonized Fiber” option for easy connection.

Features

  • Low Insertion Loss
  • Low Wavelength Dependent Loss
  • Low Dark Current
  • Telcordia GR-468-CORE Compliant
  • Broad Wavelength Range
  • Excellent Thermal Stability

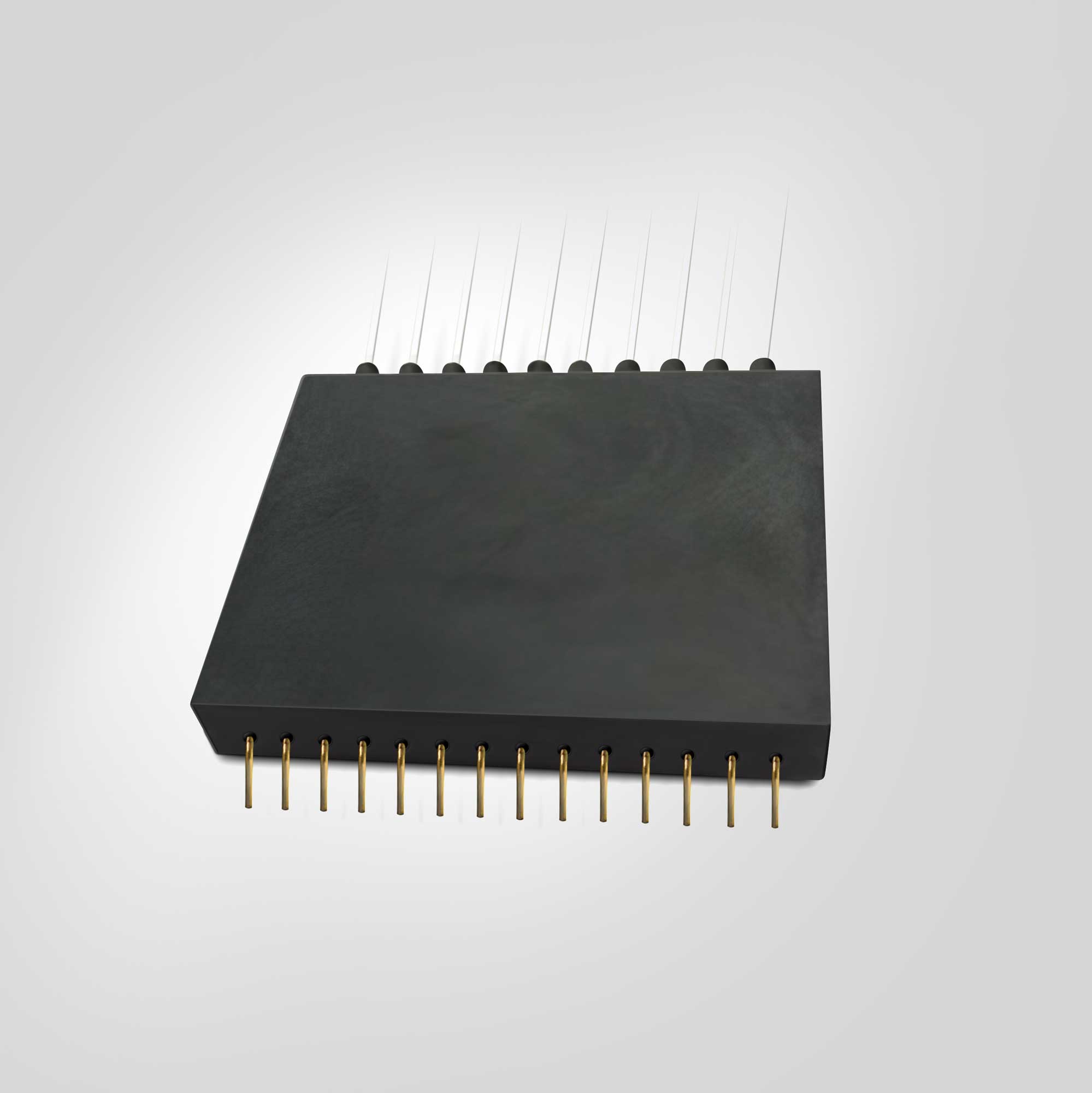

Compact Unidirectional TAP Detector Array: 4, 8, 9, and 10 channels

Go!Foton’s integrated Unidirectional Tap Detector is now available in a 4ch, 8ch, or 10ch array package. Go!Foton’s Unidirectional Tap Detector combines 3 important optical functions in to a single package: an optical tap based on Go!Foton’s filter on lens technology, an isolator function achieved through Go!Foton’s proprietary packaging technique, and a PIN photodiode based on Go!Foton’s proprietary InGaAs fabrication process. The hermetically sealed InGaAs photo detector has a low dark current, a flat and rapid power response and extremely high temperature stability across a wide wavelength range. Go!Foton’s filter on lens allows customers to choose tap proportion as well as wavelength range so that monitoring can be achieved on a single wavelength or a broad spectrum. Now these industry leading performance components are available in Array type packages to support densely packaged multi-channel power monitoring applications. Fewer component parts result in greater space efficiency, ease of handling, and inherently higher reliability.

Features

  • Low Ripple
  • Low Insertion Loss
  • Epoxy-Free Dark Current
  • Extremely Low Dark Current
  • Excellent Directivity Performance

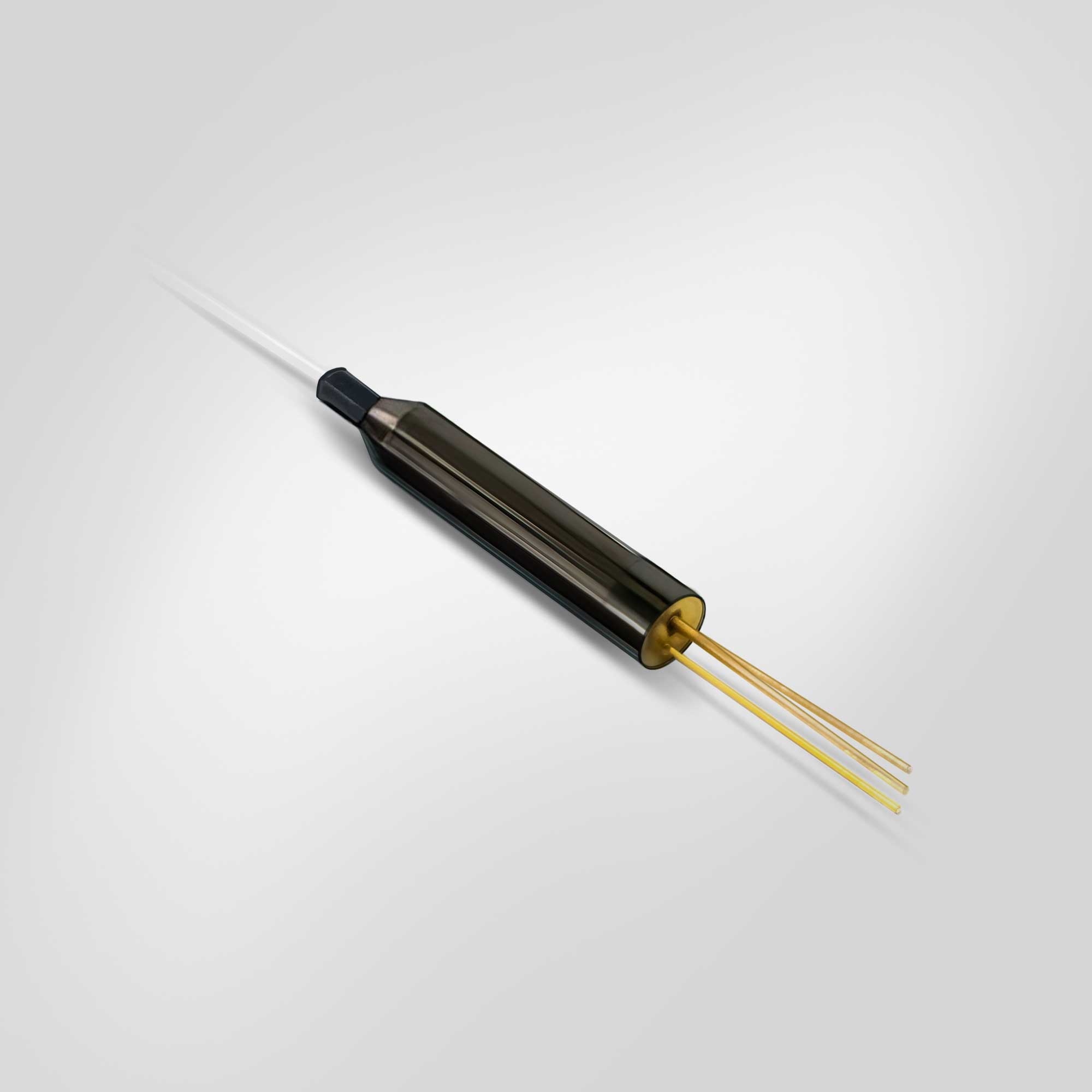

Integrated TAP Detector for FTTP 1310/1550 WDM

Go!Foton’s 1310/1550 WDM Integrated Detector is a hybrid device designed for the FTTP market.  It uses a PIN Photodiode and offers low dark current and wide bandwidth performance.  The WDM Integrated Detector is well suited for outdoor applications and can be offered with DBS overlay capability.

Features

  • FTTP Wavelength Range
  • Wide Wavelength Range
  • Low Dark Current
  • Low Insertion Loss
  • Outside Plant Environments
  • Telcordia GR-468 Compliant
  • High Isolation
  • Epoxy-Free Optical Path

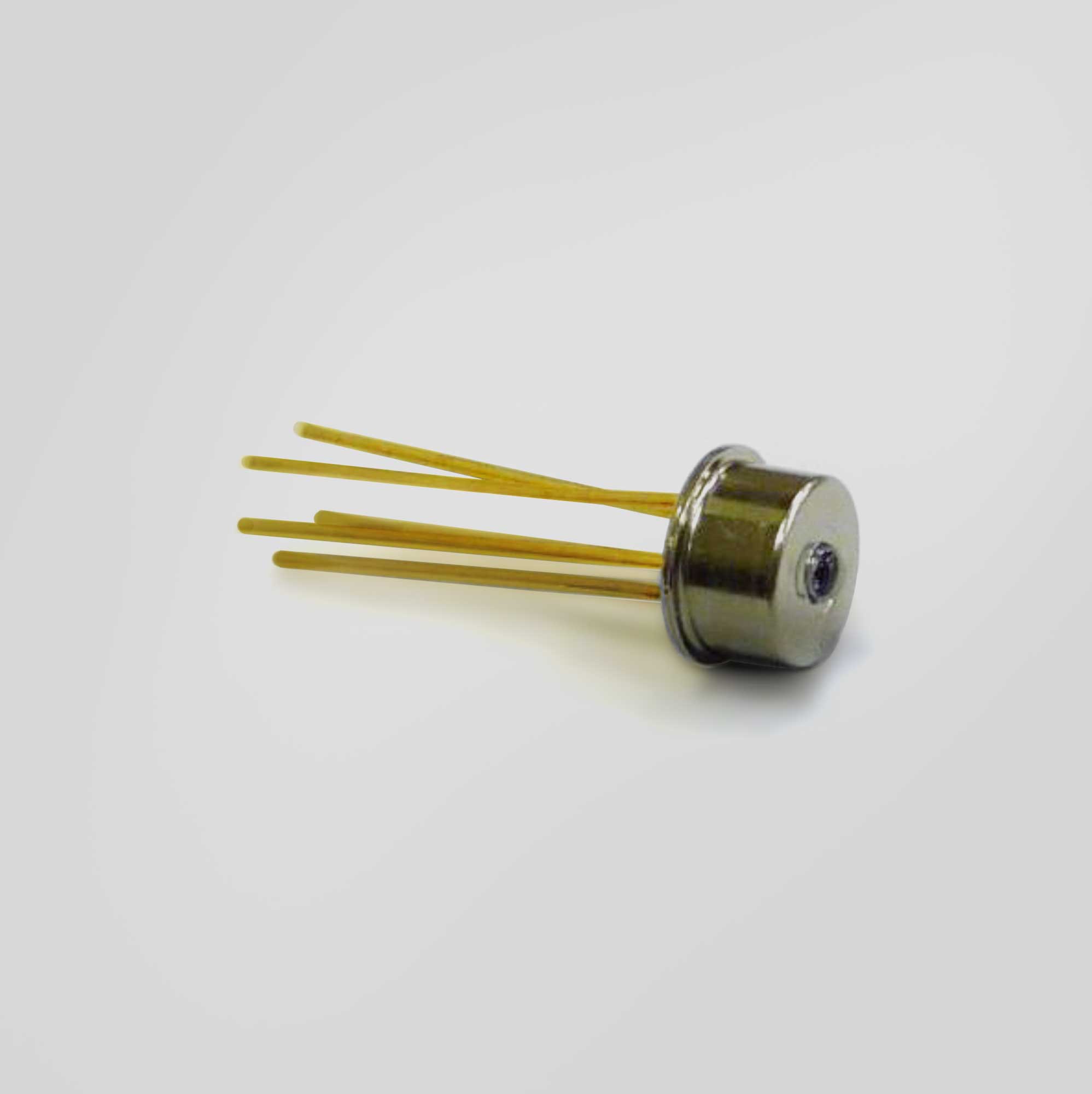

InGaAs Avalanche Photodiode (APD) 2.5 Gbps with TIA

Go!Foton Avalanche Photodiode (APD) with TIA is suitable for 2.5 Gbps applications in G-PON transceiver products, and other optical systems. This InGaAs APD has a planar structure for high reliability. This device has very high sensitivity and low noise, making it suitable for FTTx/PON systems. APD chip is fabricated at Go!Foton proprietary wafer fab.

Features

  • Hermetically Sealed
  • Planar Structure for High Reliability
  • High Sensitivity (-32dBm)
  • 1000 to 1625nm Spectral Response
  • Low Dark Current

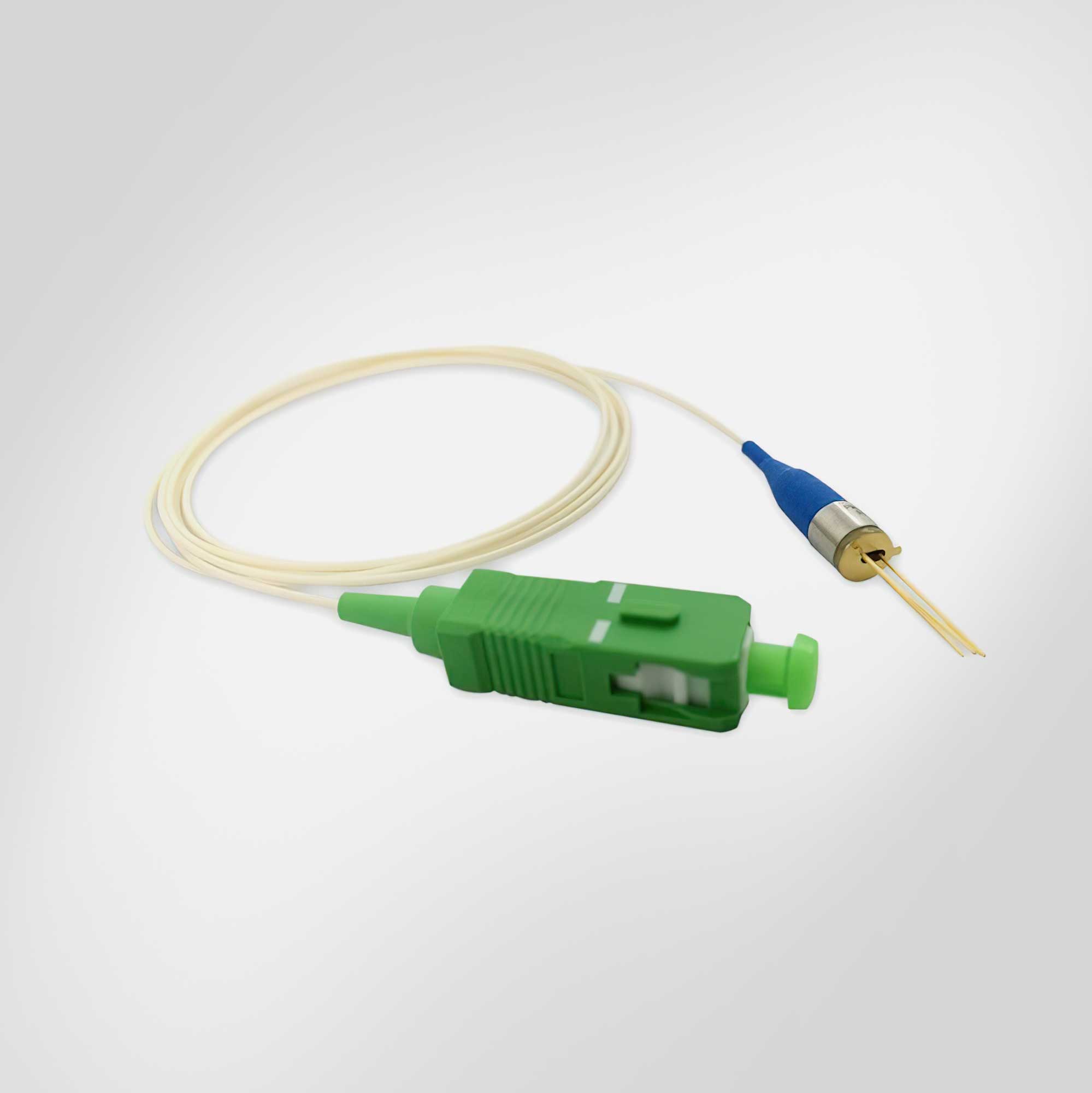

InGaAs Avalanche Photodiode Module with Pigtail for OTDR / SONET

Go!Foton PMA55 Series is a pigtailed module with InGaAs APD chip. It is applicable to Optical Time Domain Reflectometer. APD chip is fabricated at Go!Foton proprietary wafer fab and assembled into a hermetically-sealed package. It shows low dark current characteristics and a flat power response across a wide wavelength range. This product is available with mounting brackets (Flange) to ease board assembly.

Features

  • Planer Structure for High Reliability
  • 950 to 1625nm Spectral Response
  • Low Dark Current
  • Epoxy-Free Optical Path
